Caliber Database Reloading

Caliber Database

We have over 300 rifle, revolver and pistol calibers in the database for which we offer load data. This includes all different types: Magnum, Pistol/Revolver, Rimfire, Rimless and Rimmed. Next to very popular calibers such as the .223, .308 WIN, 30-06, .270 WIN, 6.5 mm Creedmore, 9 mm Luger or .45 ACP we also cover rather "exotic" calibers.

We provide the following information for each cartridge: suitable bullet diameter, standard case length (l3), standard overall cartridge length (OAL), maximum allowed pressure and a link to the load data in this particular caliber.

Most calibers also contain images with all relevant cartridge measures as well as datasheets. Find your desired caliber by using the filters for caliber, weapon use, allowed pressure and bullet diameter.
Filter
.17 HMR Cartridge Dimensions17hmr dimensions Catridge
.17 HMR

Max. Case Length (l3): 1.06'' | 26.92 mm

Maximum Standardized Pressure: 26542.32 psi | 1830 bar

.17 Hornet Catridge Dimensions
.17 Hornet

Max. Case Length (l3): 1.4'' | 35.64 mm

Maximum Standardized Pressure: 53664.8 psi | 3700 bar

.17 Libra Catridge Dimensions
.17 Libra

Max. Case Length (l3): 1.18'' | 30.1 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar

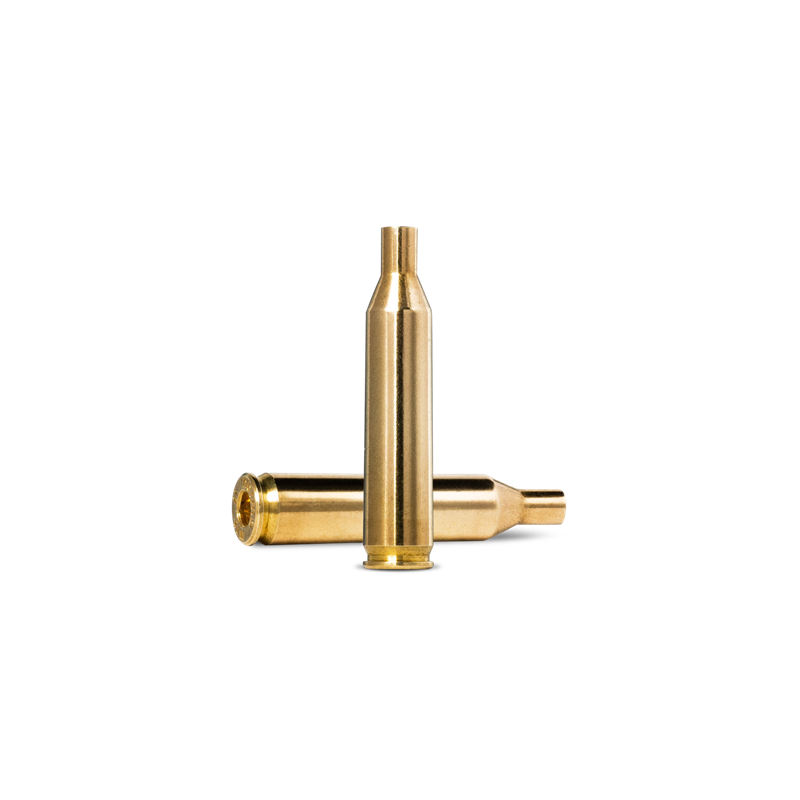

17 rem cases Catridge .17 Rem. Catridge Dimensions
.17 Rem.

Max. Case Length (l3): 1.8'' | 45.62 mm

Maximum Standardized Pressure: 61642 psi | 4250 bar

.17 Rem. Fireball Catridge Dimensions
.17 Rem. Fireball

Max. Case Length (l3): 1.4'' | 35.56 mm

Maximum Standardized Pressure: 55115.2 psi | 3800 bar

.17 WSM Catridge Dimensions
.17 WSM

Max. Case Length (l3): 1.2'' | 30.48 mm

Maximum Standardized Pressure: 33069.12 psi | 2280 bar

204 ruger cases Catridge .204 Ruger Catridge Dimensions
.204 Ruger

Max. Case Length (l3): 1.84'' | 46.81 mm

Maximum Standardized Pressure: 58741.2 psi | 4050 bar

.218 Bee Catridge Dimensions
.218 Bee

Max. Case Length (l3): 1.34'' | 34.16 mm

Maximum Standardized Pressure: 46412.8 psi | 3200 bar

.219 Zipper Catridge Dimensions
.219 Zipper

Max. Case Length (l3): 1.93'' | 49.1 mm

Maximum Standardized Pressure: 41336.4 psi | 2850 bar

.22 Ackley Hornady
.22 Ackley Hornet

Max. Case Length (l3): 1.4'' | 35.64 mm

Maximum Standardized Pressure: 43512 psi | 3000 bar

.22 BR Rem.

Max. Case Length (l3): 1.55'' | 39.37 mm

Maximum Standardized Pressure: 58741.2 psi | 4050 bar

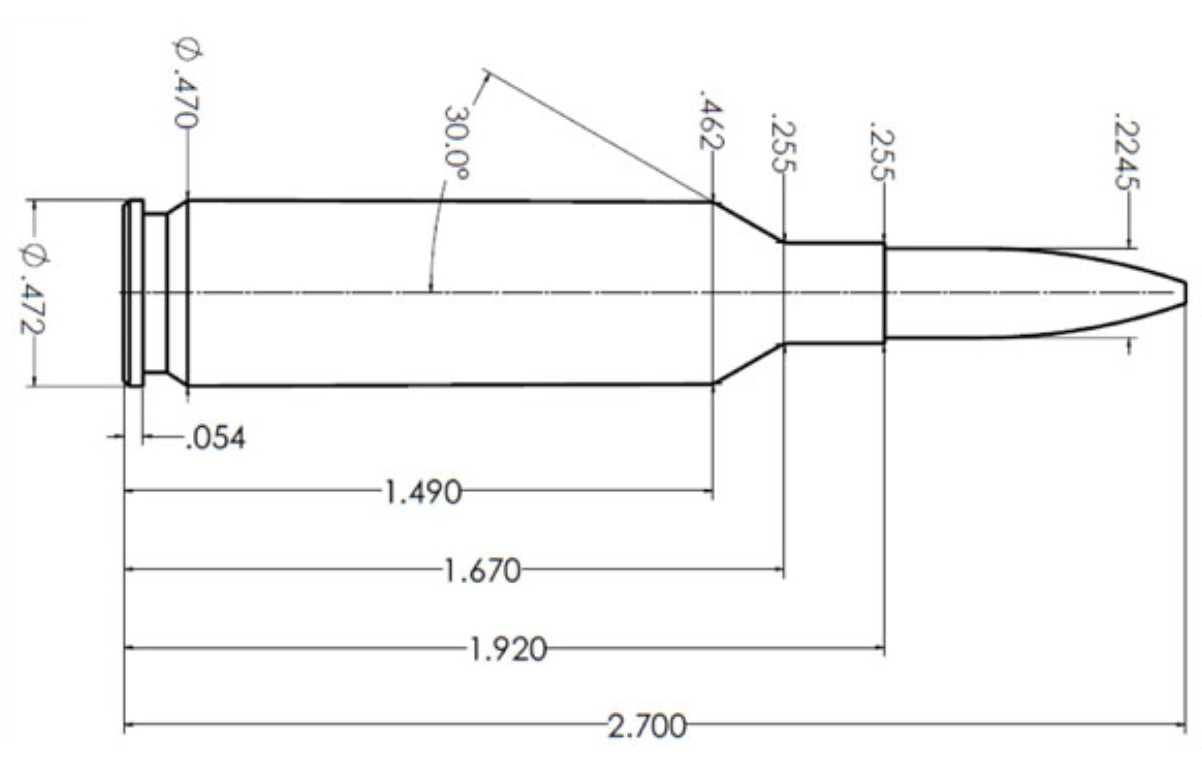

.22 Creedmore Catridge Dimensions
.22 Creedmoor

Max. Case Length (l3): 1.92'' | 48.77 mm

Maximum Standardized Pressure: 64977.92 psi | 4480 bar

.22 Hornet Catridge Dimensions
.22 Hornet

Max. Case Length (l3): 1.4'' | 35.64 mm

Maximum Standardized Pressure: 43512 psi | 3000 bar

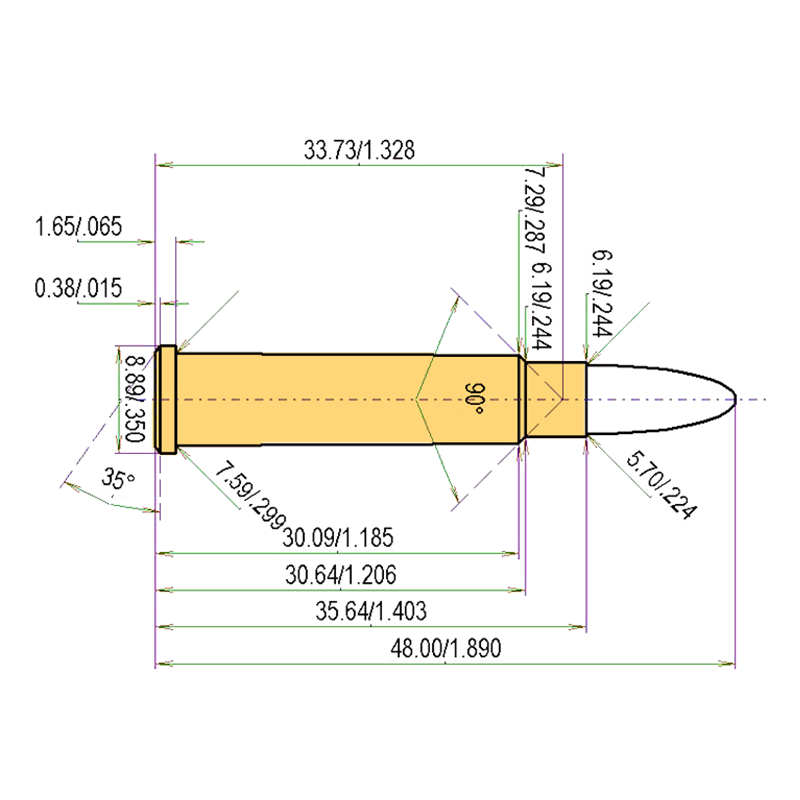

.22 Picra Catridge Dimensions
.22 Picra

Max. Case Length (l3): 1.4'' | 35.64 mm

Maximum Standardized Pressure: 46412.8 psi | 3200 bar

.22 PPC USA Catridge Dimensions
.22 PPC USA

Max. Case Length (l3): 1.51'' | 38.4 mm

Maximum Standardized Pressure: 58741.2 psi | 4050 bar

.22 Rem. Jet Mag. Catridge Dimensions
.22 Rem. Jet Mag.

Max. Case Length (l3): 1.28'' | 32.46 mm

Maximum Standardized Pressure: 36985.2 psi | 2550 bar

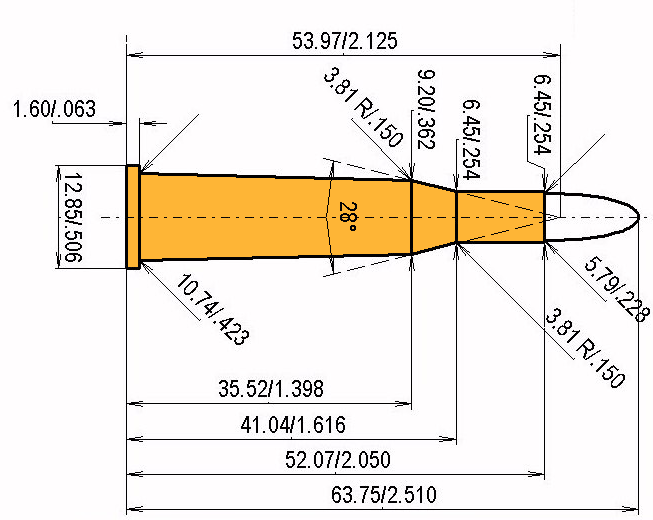

.22 Savage Catridge Dimensions
.22 Savage

Max. Case Length (l3): 2.05'' | 52.07 mm

Maximum Standardized Pressure: 47863.2 psi | 3300 bar

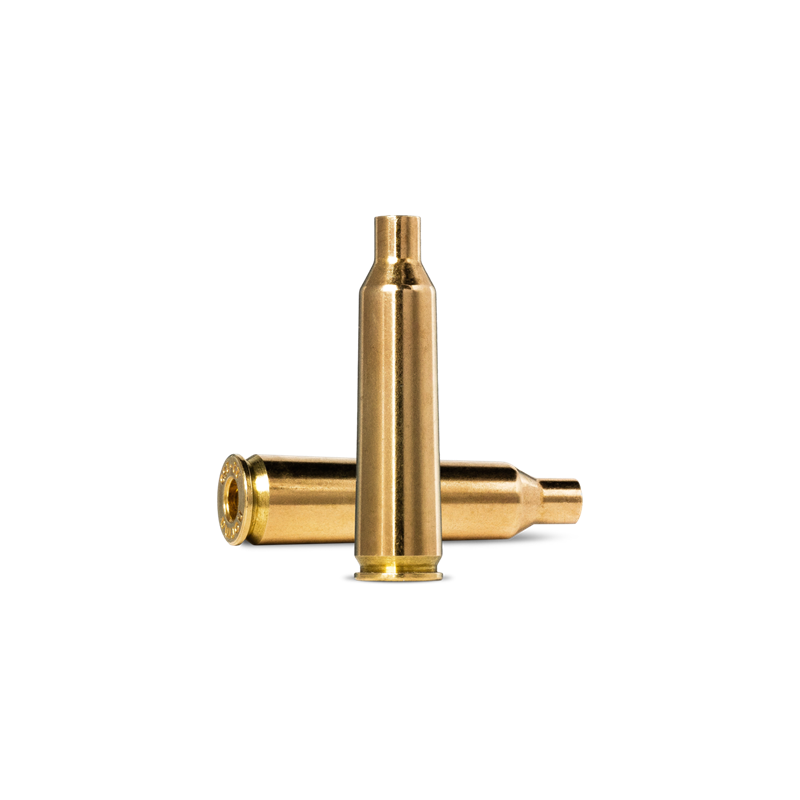

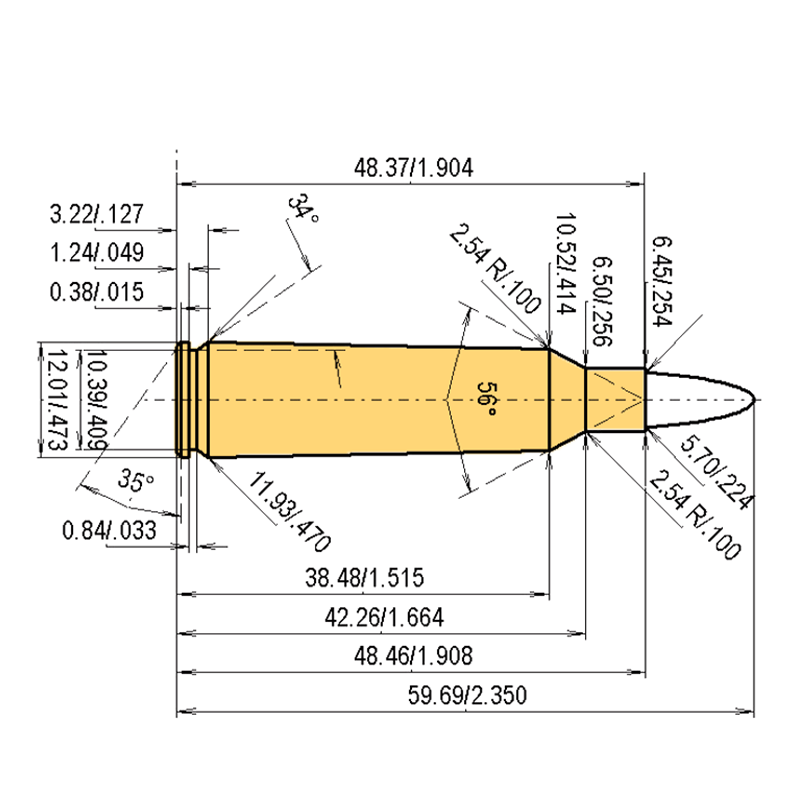

22-250 rem cases Catridge .22-250 Rem. Catridge Dimensions
.22-250 Rem.

Max. Case Length (l3): 1.91'' | 48.56 mm

Maximum Standardized Pressure: 58741.2 psi | 4050 bar

220 swift cases Catridge .220 Swift Catridge Dimensions
.220 Swift

Max. Case Length (l3): 2.2'' | 56.01 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar

221 fireball cases Catridge .221 Rem. Fireball Catridge Dimensions
.221 Rem. Fireball

Max. Case Length (l3): 1.4'' | 35.48 mm

Maximum Standardized Pressure: 46412.8 psi | 3200 bar

222 rem cases Catridge .222 Rem. Catridge Dimensions
.222 Rem.

Max. Case Length (l3): 1.7'' | 43.18 mm

Maximum Standardized Pressure: 53664.8 psi | 3700 bar

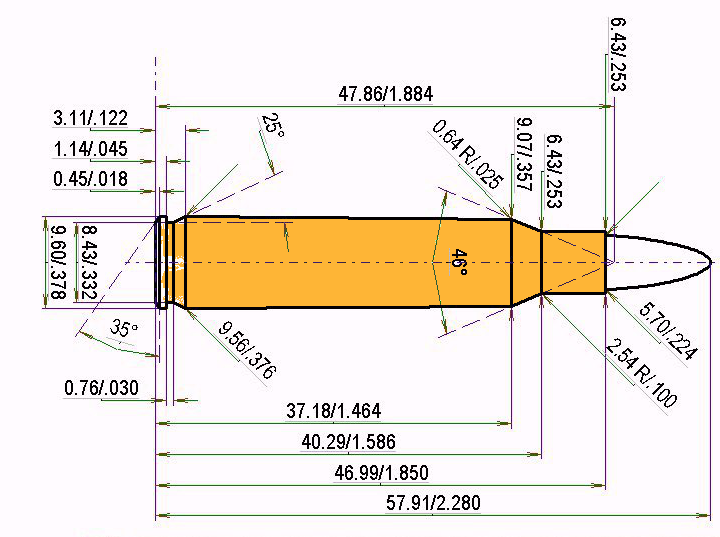

.222 Rem. Mag. Catridge Dimensions
.222 Rem. Mag.

Max. Case Length (l3): 1.85'' | 46.99 mm

Maximum Standardized Pressure: 58741.2 psi | 4050 bar

.223 Rem. Catridge . 223 Rem. Catridge Dimensions
.223 Rem.

Max. Case Length (l3): 1.76'' | 44.68 mm

Maximum Standardized Pressure: 54970.16 psi | 3790 bar

5x56 45NATO dimensions Catridge Dimensions
.223 Rem. (5.56 x 45 NATO)

Max. Case Length (l3): 1.76'' | 44.68 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar
