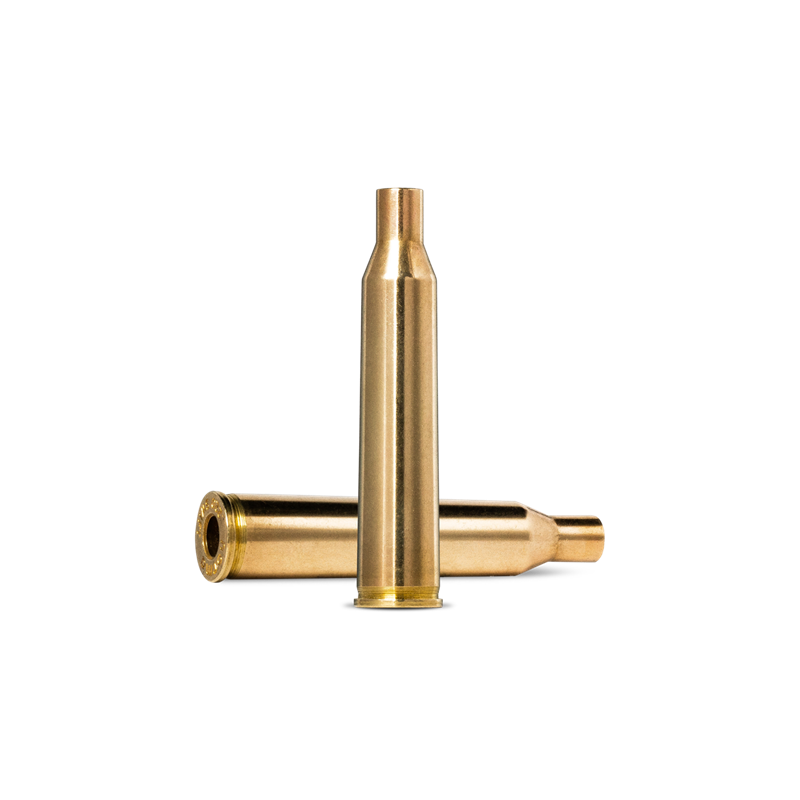

Load data for caliber ".220 Swift"
You find load data for cartridges in caliber .220 Swift with all common powders and bullets by clicking the "Loads in this caliber" button above.

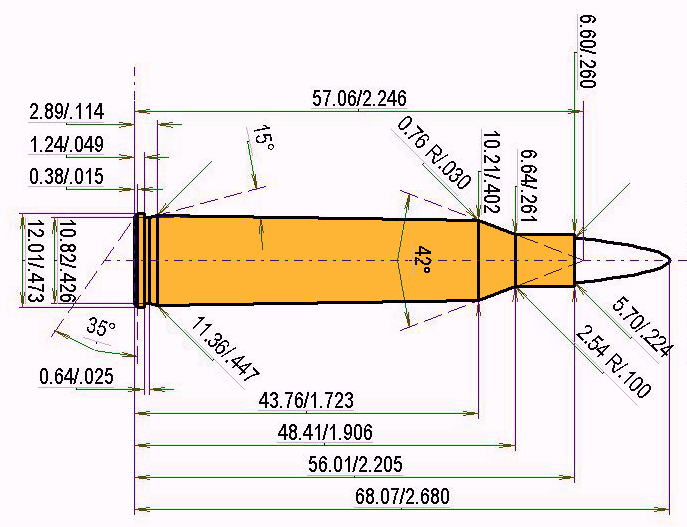

Technical Specifications(based on the respective safety standard - see more details in tab "Datasheet" if available)
|Bullet Diameter:||0.224 '' | 5.69 mm|
|Max. Case Length (l3):||2.21'' | 56.0 mm|
|Max .Cartridge Length / OAL:||2.68'' | 68.1 mm|
|Maximum Standardized Pressure:||62366 psi | 4300 bar|
C.I.P. is not a manufacturer but a safety standard: The Commission internationale permanente pour l'épreuve des armes à feu portatives ("Permanent International Commission for the Proof of Small Arms" – commonly abbreviated as C.I.P.) is an international organisation which sets standards for safety testing of firearms. (The word portatives ("portable") in the name refers to the fact the C.I.P. tests small arms almost exclusively; it is ordinarily omitted from the English translation of the name.) As of 2015, its members are the national governments of 14 countries, of which 11 are European Union member states. The C.I.P. safeguards that all firearms and ammunition sold to civilian purchasers in member states are safe for the users.
To achieve this, all such firearms are first proof tested at C.I.P. accredited Proof Houses. The same applies for cartridges; at regular intervals, cartridges are tested against the C.I.P. pressure specifications at the ammunition manufacturing plants and at C.I.P. accredited Proof Houses.
