Magnum Cartridge

Magnum Cartridges

A Magnum cartridge is a firearms cartridge with a larger case size than, or derived from, a similar cartridge of the same bullet caliber and case shoulder shape. The term derives from the .357 Magnum, the original such cartridge.
Filter

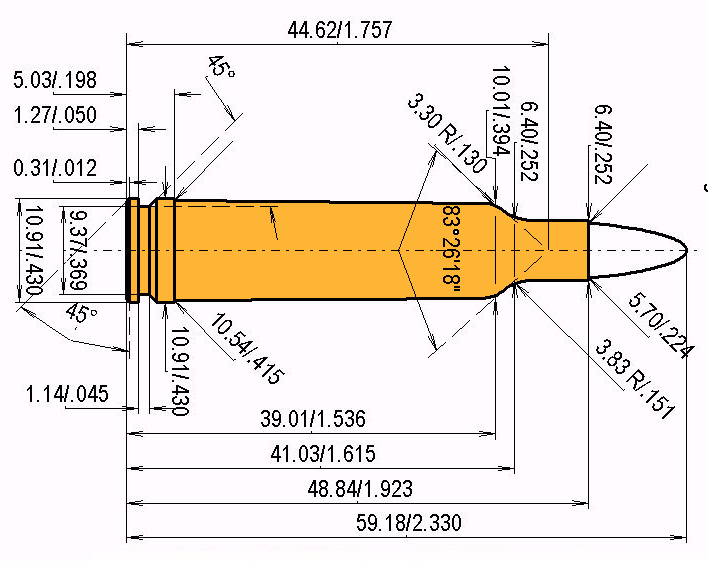

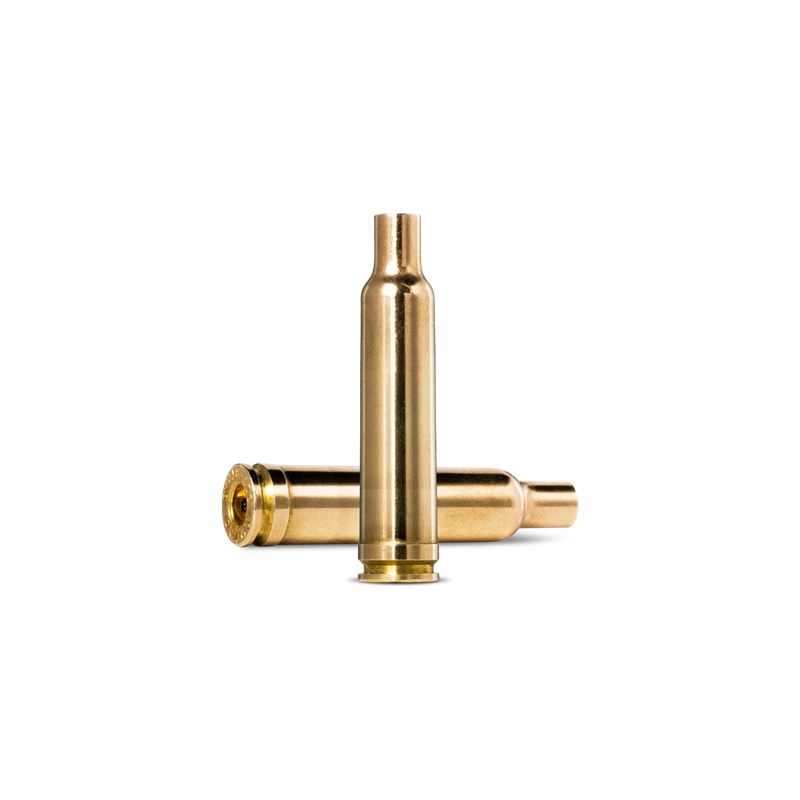

224 weatherby magnum case Catridge .224 Weath. Mag. Catridge Dimensions
.224 Weath. Mag.

Max. Case Length (l3): 1.92'' | 48.84 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar

.240 Belt. Riml. Nitr. Exp. Catridge Dimensions
.240 Belt. Riml. Nitr. Exp.

Max. Case Length (l3): 2.5'' | 63.4 mm

Maximum Standardized Pressure: 60191.6 psi | 4150 bar

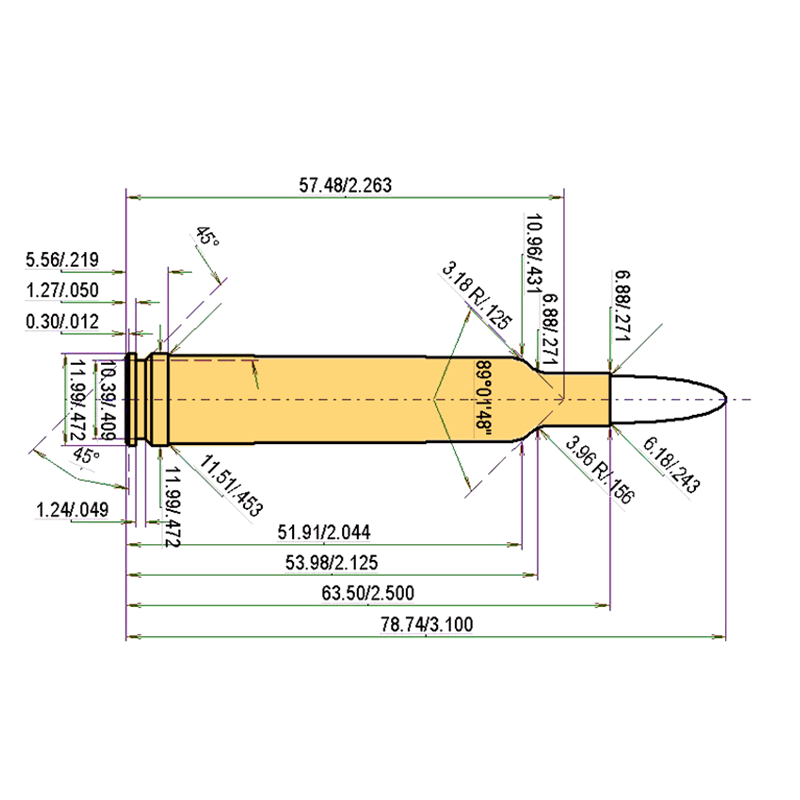

.240 Weath. Mag. Catridge Dimensions
.240 Weath. Mag.

Max. Case Length (l3): 2.5'' | 63.5 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar

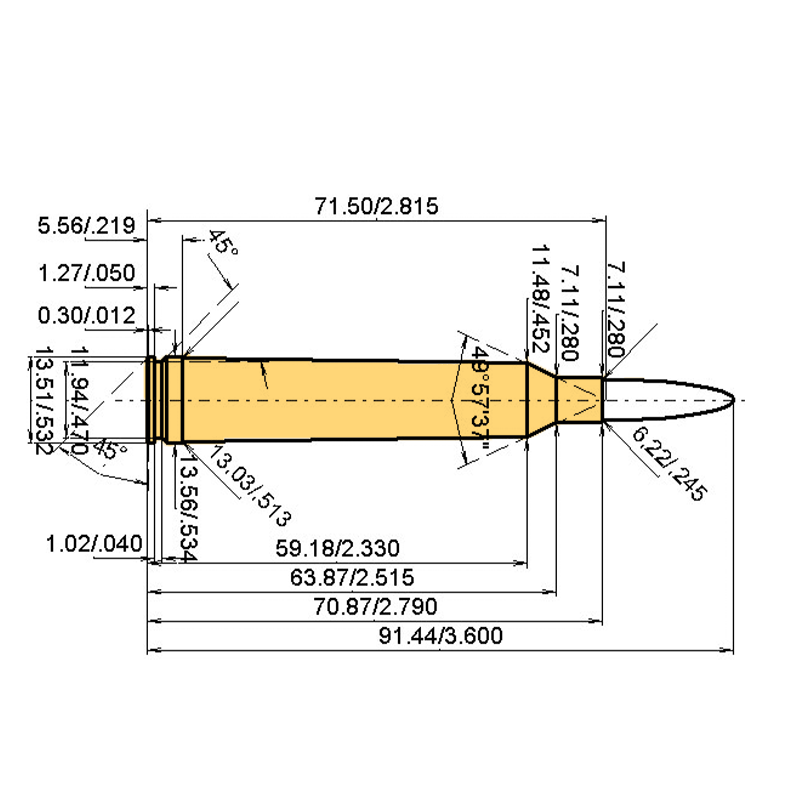

.244 H&H Mag. Catridge Dimensions
.244 H&H Mag.

Max. Case Length (l3): 2.78'' | 70.51 mm

Maximum Standardized Pressure: 63092.4 psi | 4350 bar

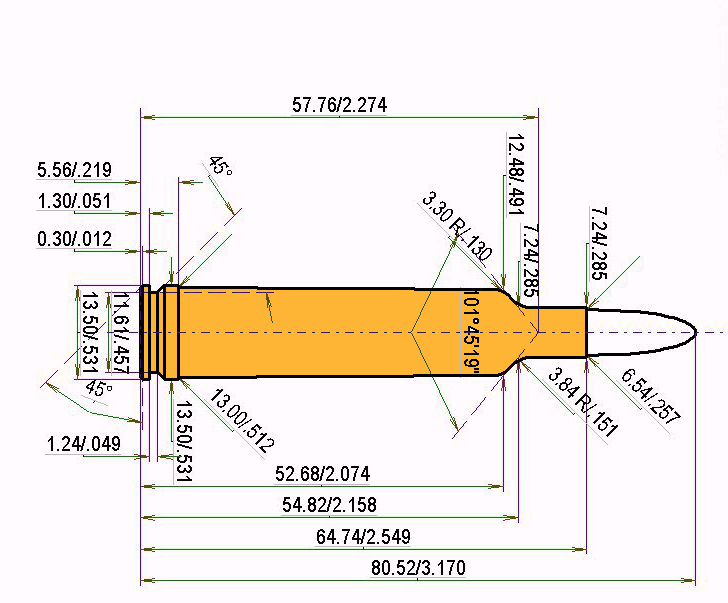

.257 Weath. Mag. Catridge Dimensions
.257 Weath. Mag.

Max. Case Length (l3): 2.55'' | 64.74 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar

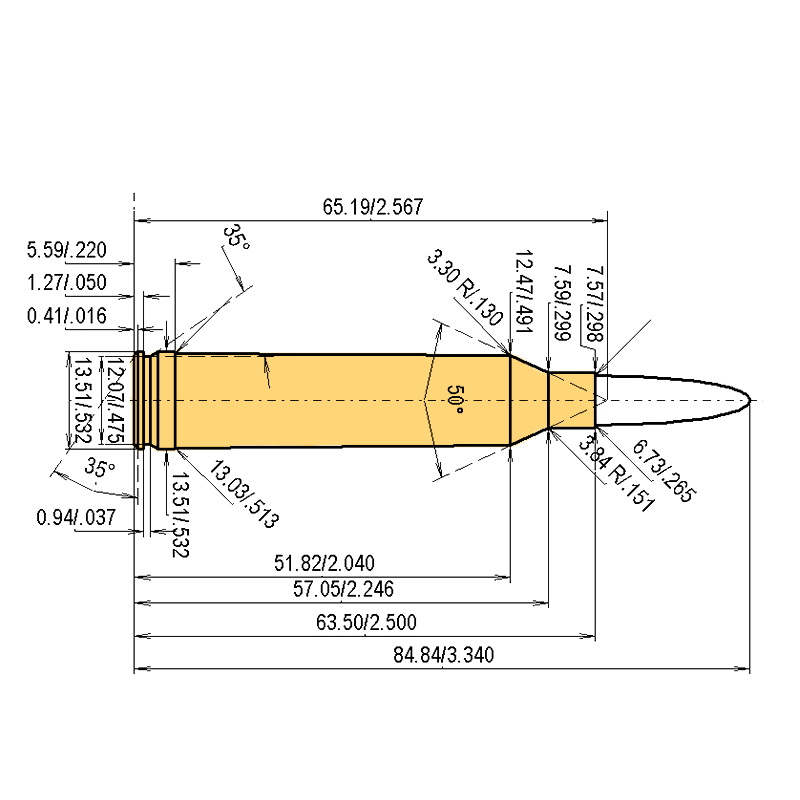

.264 Win. Mag. Catridge Dimensions
.264 Win. Mag.

Max. Case Length (l3): 2.5'' | 63.5 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar

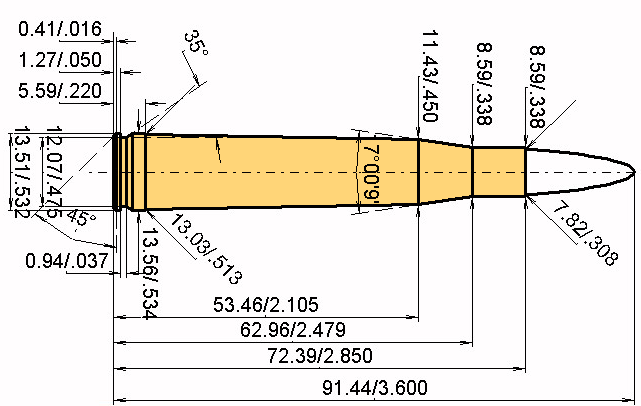

.300 H & H Mag. Catridge Dimensions
.300 H & H Mag.

Max. Case Length (l3): 2.85'' | 72.39 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar

.300 Weath. Mag. Catridge Dimensions
.300 Weath. Mag.

Max. Case Length (l3): 2.82'' | 71.73 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar

.300 Win. Mag. Catridge 300 Win. Magnum Catridge Dimensions
.300 Win. Mag.

Max. Case Length (l3): 2.62'' | 66.55 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar

.308 Norma Mag. Catridge Dimensions
.308 Norma Mag.

Max. Case Length (l3): 2.56'' | 65 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar

.338 Winchester Magnum Catridge Dimensions
.338 Win Mag.

Max. Case Length (l3): 2.5'' | 63.5 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar

.340 Weath. Mag. Catridge Dimensions
.340 Weath. Mag.

Max. Case Length (l3): 2.82'' | 71.76 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar

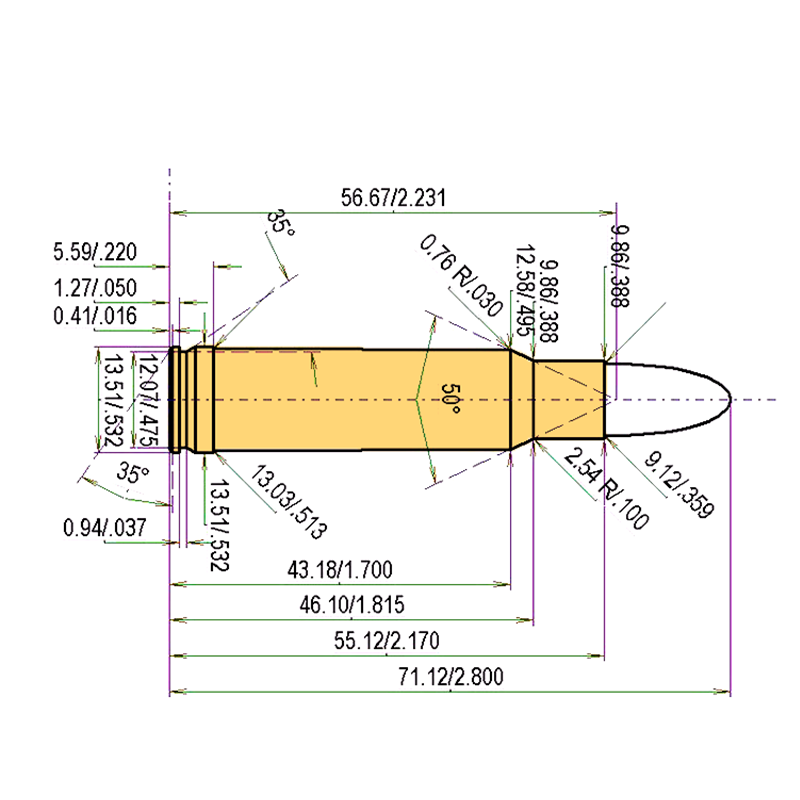

.350 Rem. Mag. Catridge Dimensions
.350 Rem. Mag.

Max. Case Length (l3): 2.17'' | 55.12 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar

.358 Norma Mag. Catridge Dimensions
.358 Norma Mag.

Max. Case Length (l3): 2.52'' | 63.98 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar

.375 H.& H. Mag. Catridge 375huhma Catridge Dimensions
.375 H.& H. Mag.

Max. Case Length (l3): 2.86'' | 72.62 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar

.375 Weath. Mag. Catridge Dimensions
.375 Weath. Mag.

Max. Case Length (l3): 2.85'' | 72.39 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar

.378 Weath. Mag. Catridge Dimensions
.378 Weath. Mag.

Max. Case Length (l3): 2.91'' | 73.99 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar

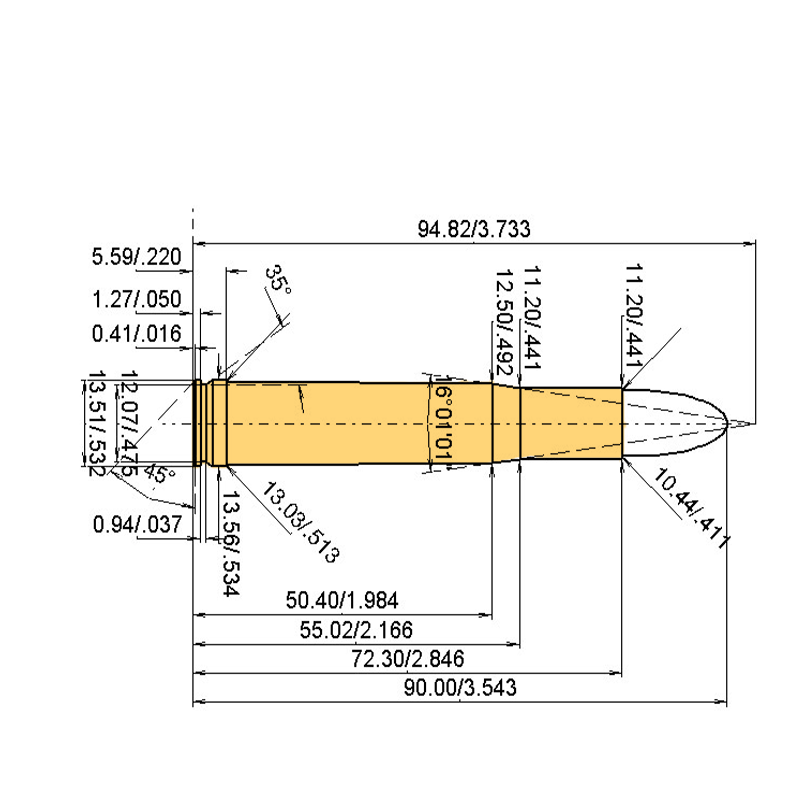

.400 H.& H. Belt.Mag Catridge Dimensions
.400 H.& H. Belt.Mag

Max. Case Length (l3): 2.85'' | 72.29 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar

.416 Rem. Mag. Catridge Dimensions
.416 Rem. Mag.

Max. Case Length (l3): 2.85'' | 72.39 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar

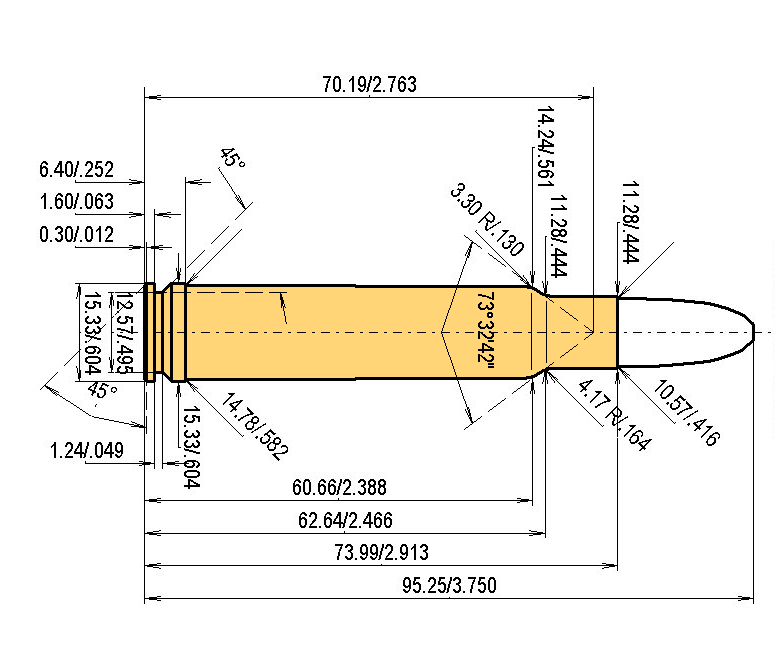

.416 Weath. Mag. Catridge Dimensions
.416 Weath. Mag.

Max. Case Length (l3): 2.91'' | 73.99 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar

450 marlin dimensions Catridge Dimensions
.450 Marlin

Max. Case Length (l3): 2.08'' | 52.83 mm

Maximum Standardized Pressure: 47863.2 psi | 3300 bar

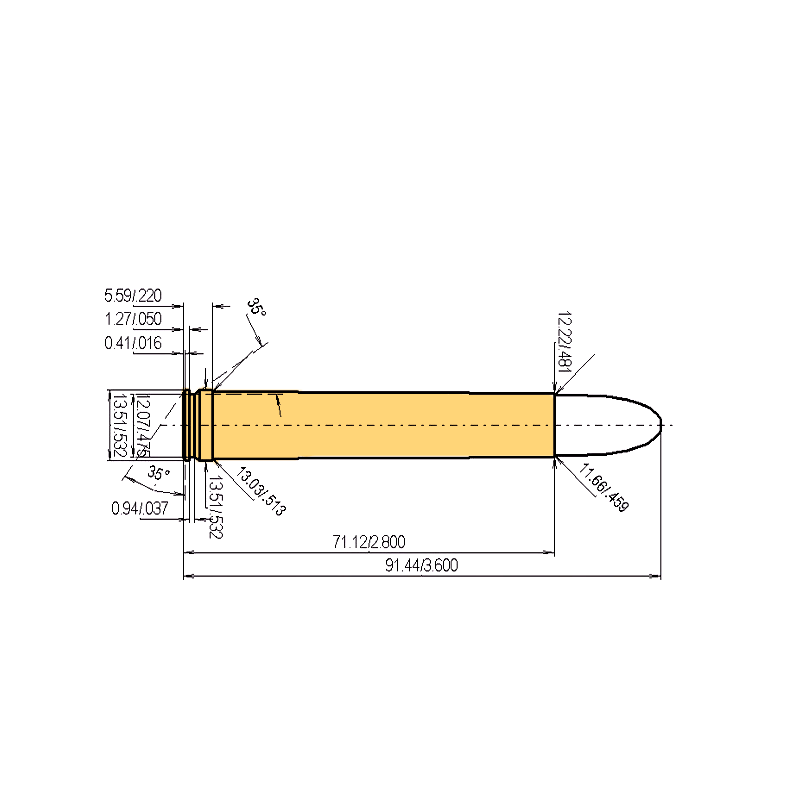

.458 Lott Catridge Dimensions
.458 Lott

Max. Case Length (l3): 2.8'' | 71.12 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar

.458 Win.Mag. Catridge Dimensions
.458 Win.Mag.

Max. Case Length (l3): 2.5'' | 63.5 mm

Maximum Standardized Pressure: 62367.2 psi | 4300 bar

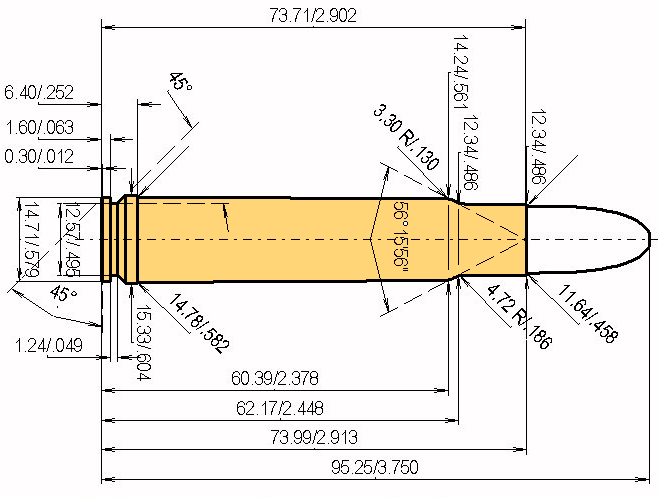

.460 Weath. Mag. Catridge Dimensions
.460 Weath. Mag.

Max. Case Length (l3): 2.91'' | 73.99 mm

Maximum Standardized Pressure: 63817.6 psi | 4400 bar
