9 x 57 Mauser

Reloading data for 9 x 57 Mauser cartridges and specifications for cases and loads in this caliber.
Product number: CID_1243
Load data for caliber "9 x 57 Mauser"
The 9x57 Mauser is a powerful rifle cartridge developed by German firearms manufacturer, Paul Mauser in 1893. It has an overall length of 59mm and a bullet weight ranging from 145-200 grains.
You find 9 x 57 Mauser with all common powders and bullets by clicking the 'Loads in this caliber' button above.

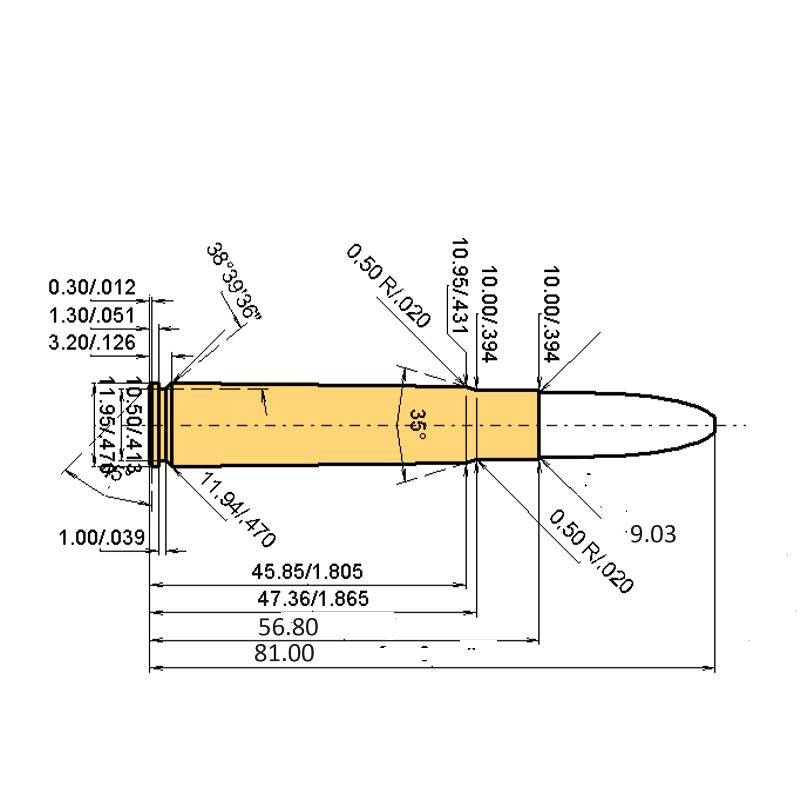

Technical Specifications (based on the respective safety standard - see more details in tab 'Datasheet' if available)

Caliber: 9 x 57 Mauser
Cartridge Type: Rimless
Bullet Diameter: 0.357 '' | 9.07 mm
Primer Size: Large Rifle (LR)
Max. Case Length (l3):2.24'' | 56.79 mm
Max .Cartridge Length / OAL:3.19'' | 81 mm
Maximum Standardized Pressure:40611.2 psi | 2800 bar
The Commission internationale permanente pour l'épreuve des armes à feu portatives ("Permanent International Commission for the Proof of Small Arms" – commonly abbreviated as C.I.P.) is an international organisation which sets standards for safety testing of firearms. (The word portatives ("portable") in the name refers to the fact the C.I.P. tests small arms almost exclusively; it is ordinarily omitted from the English translation of the name.) As of 2015, its members are the national governments of 14 countries, of which 11 are European Union member states. The C.I.P. safeguards that all firearms and ammunition sold to civilian purchasers in member states are safe for the users.
To achieve this, all such firearms are first proof tested at C.I.P. accredited Proof Houses. The same applies for cartridges; at regular intervals, cartridges are tested against the C.I.P. pressure specifications at the ammunition manufacturing plants and at C.I.P. accredited Proof Houses.
