.32-40 Win.

Reloading data for .32-40 Win. cartridges and specifications for cases and loads in this caliber.
Product number: CID_427
Load data for caliber ".32-40 Win."
The .32-40 Winchester, also known as the .32-40 WCF (Winchester Center Fire), is a centerfire rifle cartridge developed by the Winchester Repeating Arms Company in the late 1800s. It was designed for use in lever-action rifles and was based on the same case as the .38-55 Winchester, but necked down to accept a smaller, .321-inch bullet.

The .32-40 Winchester cartridge typically fires a 165- or 170-grain bullet at a muzzle velocity of around 1,800 to 2,000 feet per second, delivering moderate energy and stopping power at medium ranges. It was designed as a hunting cartridge for use on medium-sized game such as deer and black bear, and it gained a reputation as an effective and versatile cartridge for hunters.

However, the .32-40 Winchester was not as popular as some of Winchester's other cartridges, such as the .30-30 and .45-70, and it was eventually discontinued in the early 1940s. Nonetheless, it remains a historical and collectible cartridge, and is occasionally still used for hunting by enthusiasts of classic lever-action rifles.
You find .32-40 Win. with all common powders and bullets by clicking the 'Loads in this caliber' button above.

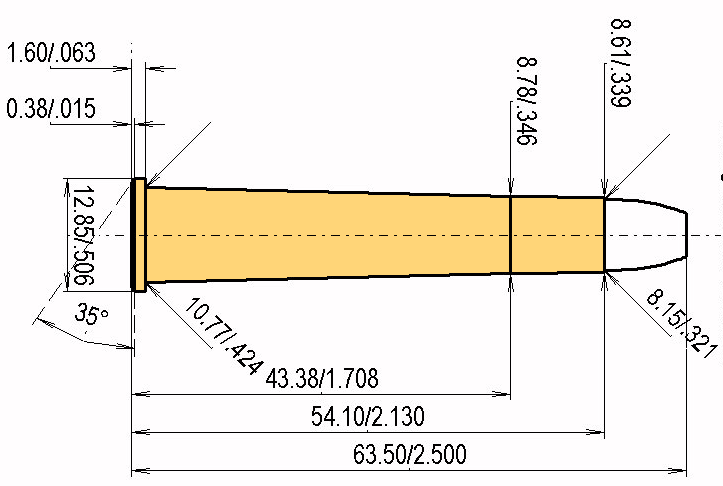

Technical Specifications (based on the respective safety standard - see more details in tab 'Datasheet' if available)

Caliber: .32-40 Win.
Cartridge Type: Rimmed
Bullet Diameter: 0.320 '' | 8.13 mm
Primer Size: Large Rifle (LR)
Max. Case Length (l3):2.13'' | 54.08 mm
Max .Cartridge Length / OAL:2.5'' | 63.5 mm
Maximum Standardized Pressure:34084.4 psi | 2350 bar
C.I.P.
The Commission internationale permanente pour l'épreuve des armes à feu portatives ("Permanent International Commission for the Proof of Small Arms" – commonly abbreviated as C.I.P.) is an international organisation which sets standards for safety testing of firearms. (The word portatives ("portable") in the name refers to the fact the C.I.P. tests small arms almost exclusively; it is ordinarily omitted from the English translation of the name.) As of 2015, its members are the national governments of 14 countries, of which 11 are European Union member states. The C.I.P. safeguards that all firearms and ammunition sold to civilian purchasers in member states are safe for the users.
To achieve this, all such firearms are first proof tested at C.I.P. accredited Proof Houses. The same applies for cartridges; at regular intervals, cartridges are tested against the C.I.P. pressure specifications at the ammunition manufacturing plants and at C.I.P. accredited Proof Houses.
